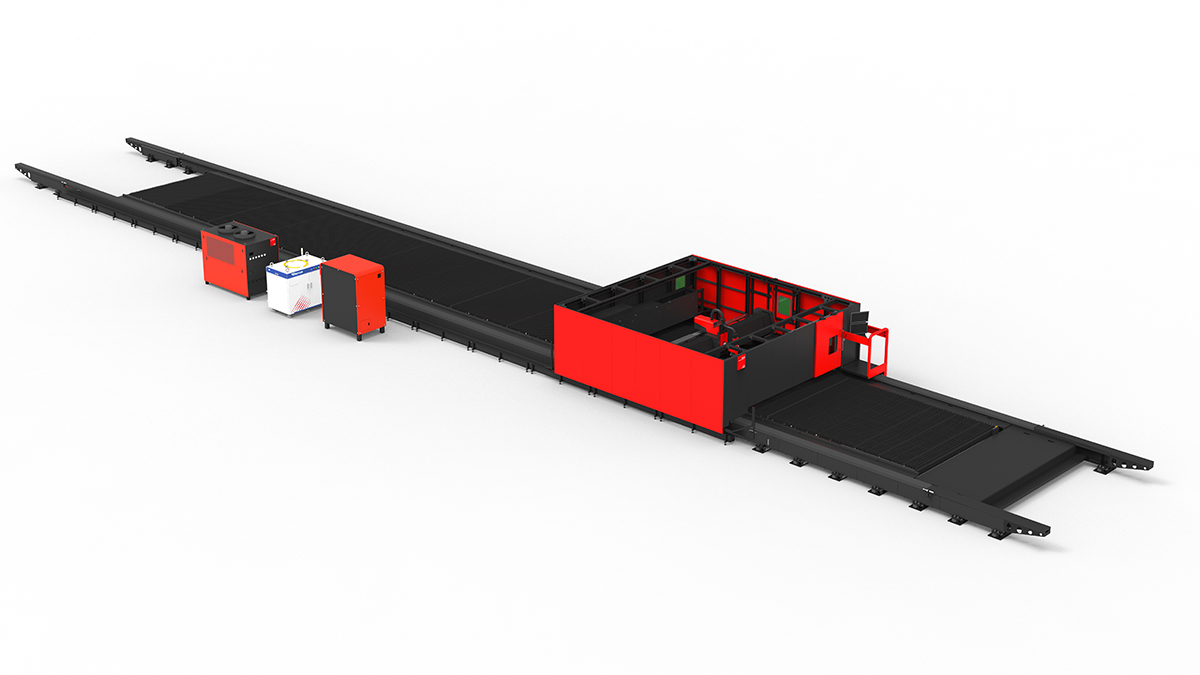

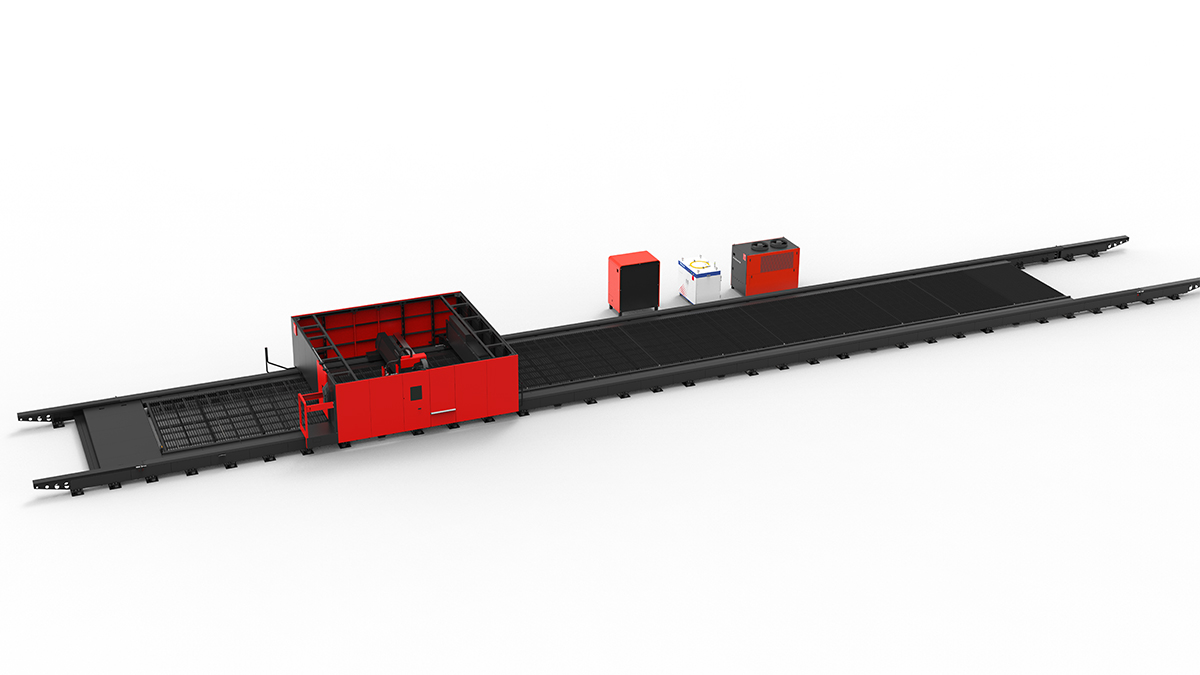

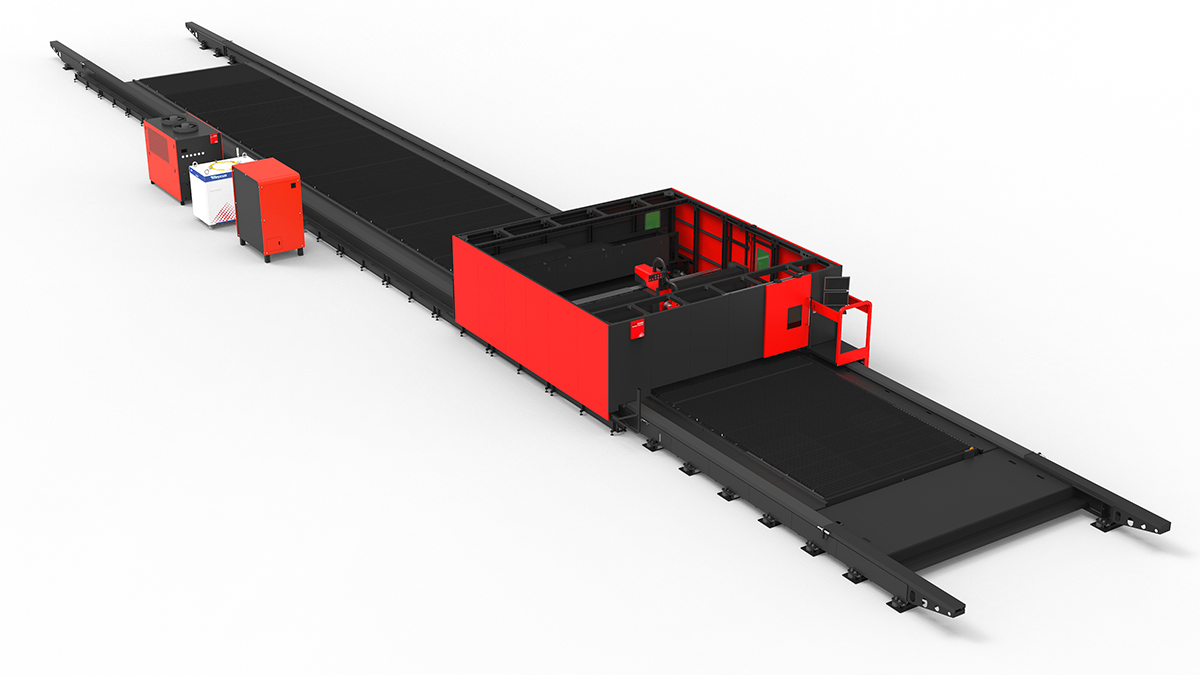

30120 Ground Rail ultra-high power fiber laser cutting machine is specifically configured for high-end customers, the whole machine design is guided by the technical team of Bystronic laser group. The main components are original imported ,with higher cutting accuracy, faster speed, easier operation, lower use cost and wider cutting material range.
30120 Ground Rail
Technical parameters
| Index Technical indicators | Technical parameters |
|---|---|
| Laser wavelength | 1060nm-1080nm |
| Power of laser | 6000W |
| Red light indication | |
| E ective processing area | 2500*12000mm |
| Repositioning accuracy of X / Y axis | 0.08 mm/10m |
| X / Y axis linkage maximum positioning speed | 100 m/min |
| X / Y axis linkage maximum acceleration | 0.8 G |
| Worktable reference height | 500mm |
| Machine weight (main machine and table, tonnes) | About 16T |
| Cutting thickness | cut through 18 mm stainless steel (nitrogen),25mm carbon steel (oxygen) |
| Drawing formats supported | DXF, PLT, AI, Gerber files, NC codes and other graphic formats of Auto CAD software. |
| Power consumption of complete machine | ≤ 30KW(6000W) |
| Power supply | Three-phase five wire AC 380V, 50Hz |
| Laser power | Cutting ability |
|---|---|
| 6000 | Max Thickness 25mm carbon steel, 18mm stainless steel |
Primary configuration
| Name | Specification/strong> | Quantity | Brand |
|---|---|---|---|
| Machine table | Independent R&D | 1 | DNE (Member of Bystronic) |
| Fiber laser cutting machine | RFL-C20000 | 1 | Raycus |
| Cooling system | Independent R&D | 1 | DNE (Member of Bystronic) |
| Cutting head | Independent R&D | 1 | DNE (Member of Bystronic) |
| Control system | Joint development | 1 | DNE (Member of Bystronic) |
| Independent dust extraction system | Independent R&D | 1 | DNE (Member of Bystronic) |
| Slagging system | Independent R&D | 1 | DNE (Member of Bystronic) |
| Blowing equipment 风机 | Standared | ||
| Equipment maintenance tools (including laser protective glasses) | Standared |
