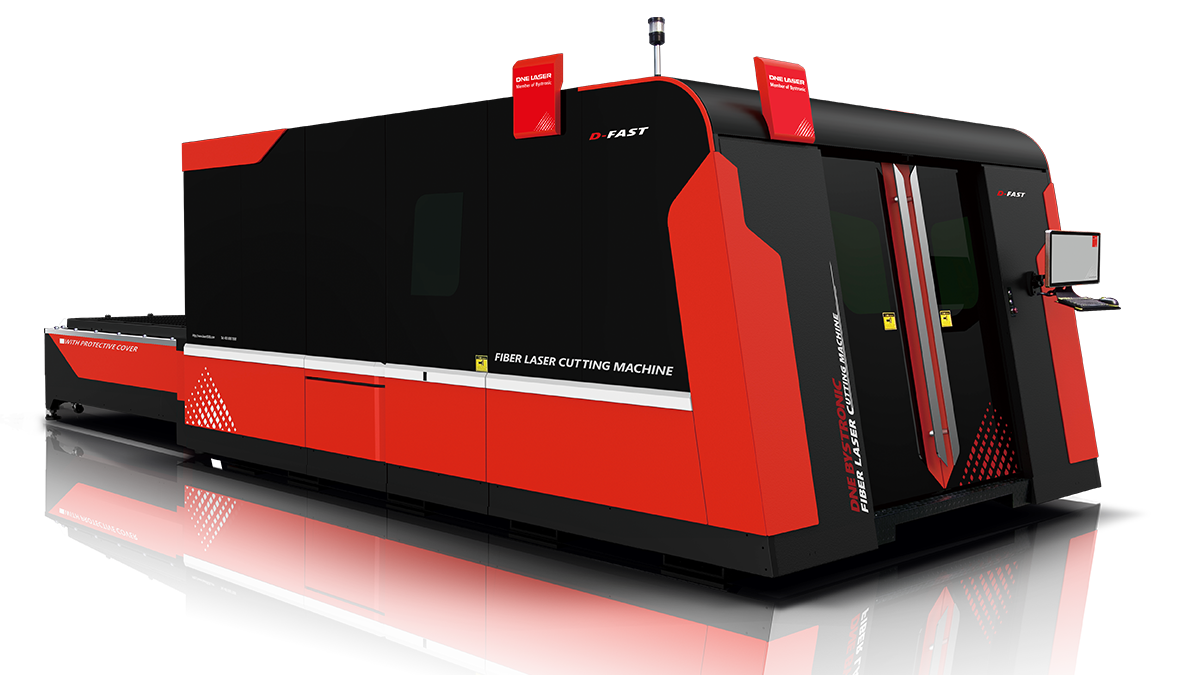

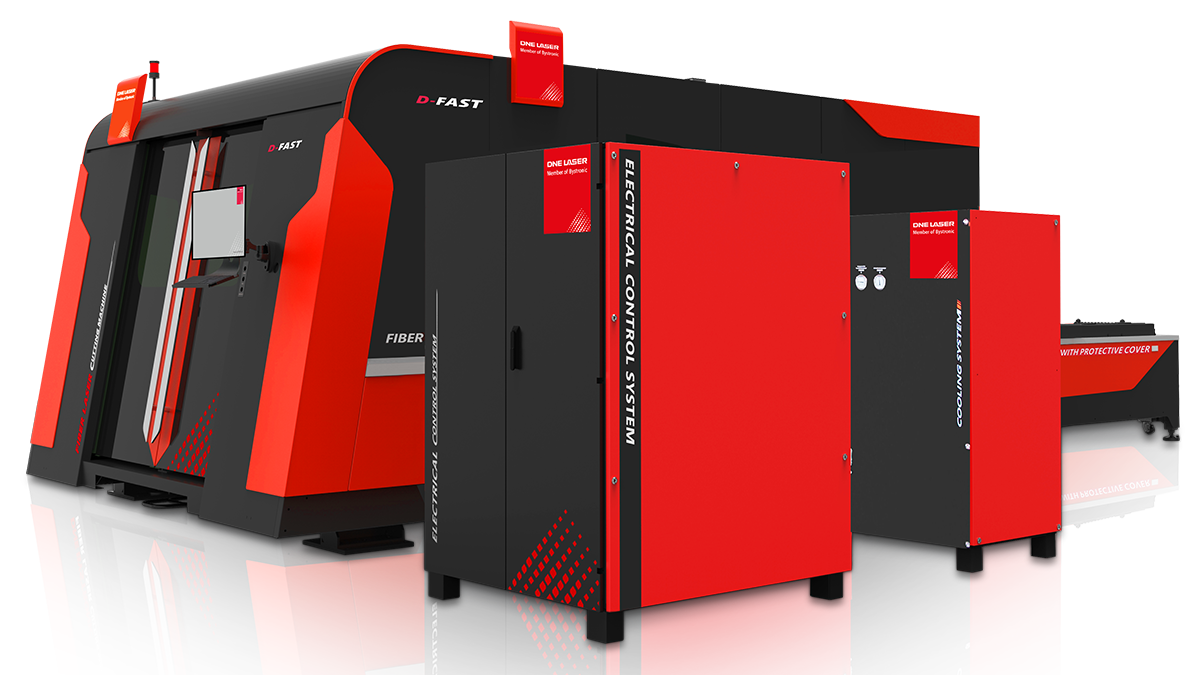

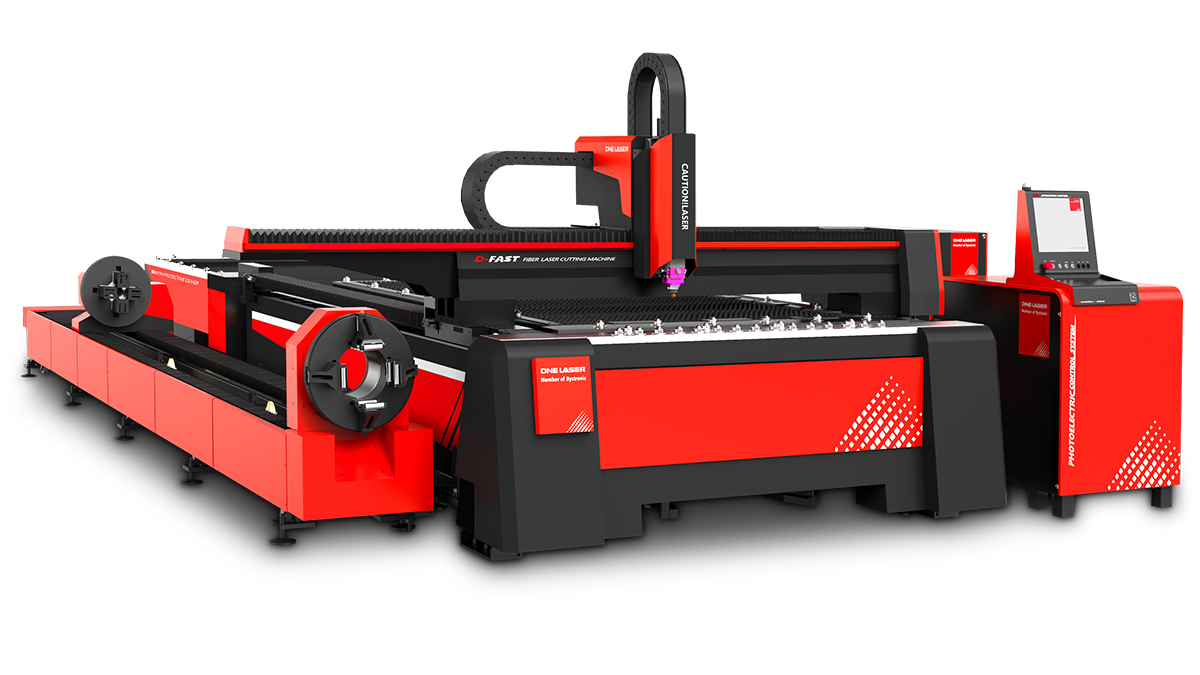

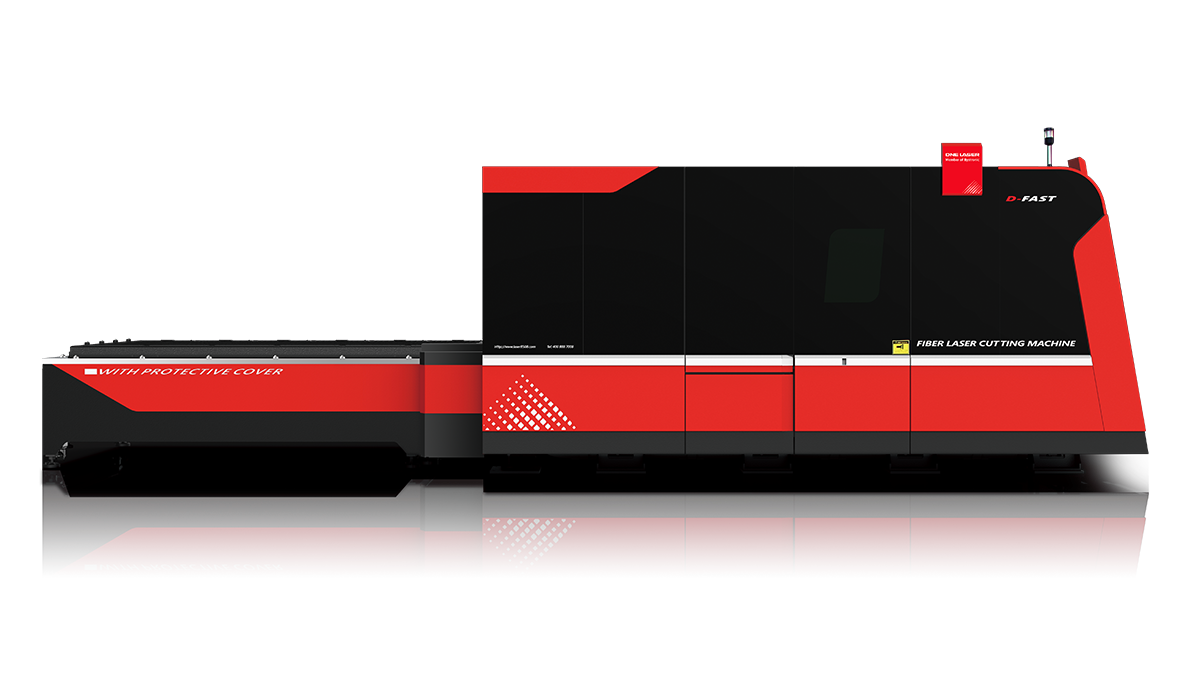

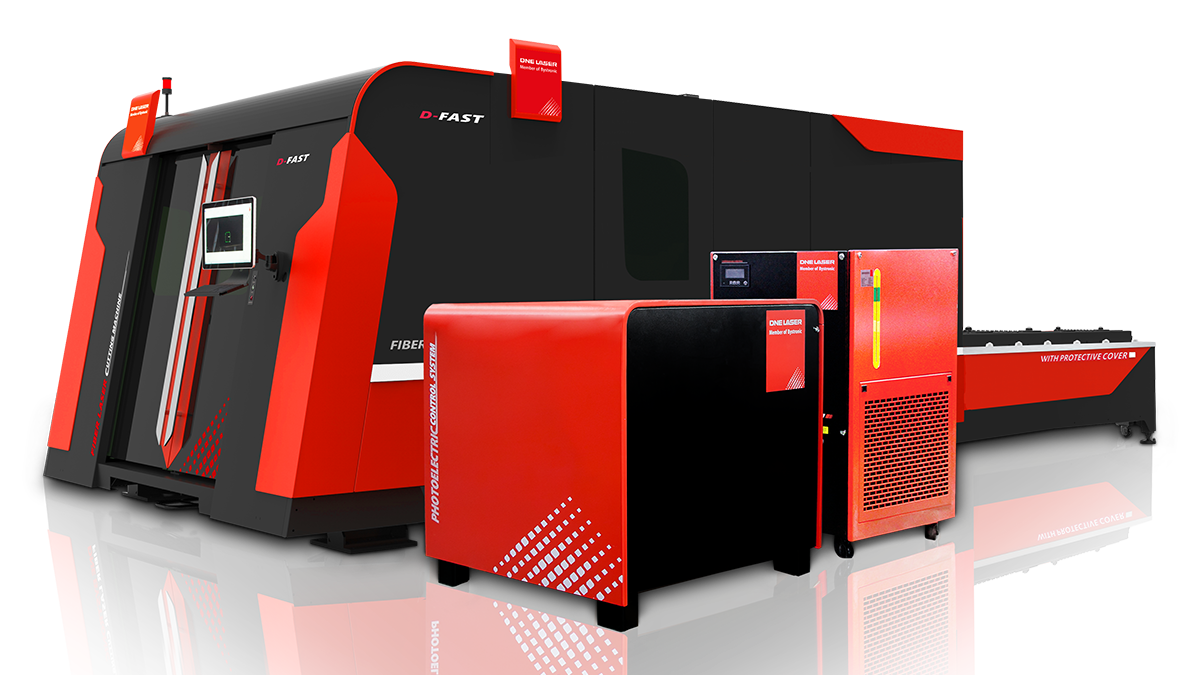

Fiber laser tube cutting machine is a product developed for the market of profile and tube cutting. It adopts the latest bus type CNC laser tube cutting system developed independentlyTo realize the control of pipe support device, chuck, etc. Can meet the carbon steel, stainless steel, aluminum and other materials such as round pipe, square pipe, U-groove, I-steel, shaped pipe profile cutting, opening, contour cutting, is a high degree of intelligent automation, high efficiency, cost-effective special pipe cutting equipment.
Technical parameters
| Technical index | Technical parameters |
|---|---|
| Laser wavelength | 900-1200nm |
| Power of laser: | 3000W |
| Aiming and positioning | Red light indication |
| Effective processing area | 1500mm *3000mm |
| Repositioningaccuracy of X / Y axis | ±0.02mm |
| Support drawing forma | Support DXF, PLT, AI, Gerber files, NC codes and other graphic formats of Auto CAD software |
| Power Total electriacalconsumption | ≤ 2 4 KW(30 0 0W) |
| Power supply | Three-phase four wire AC 380V, 50Hz/60Hz60 ,A |
Table of cutting capacity
| Laser power | Cutting ability |
|---|---|
| 3000W | Max Thickness16mm carbon steel,8mm stainless steel |
