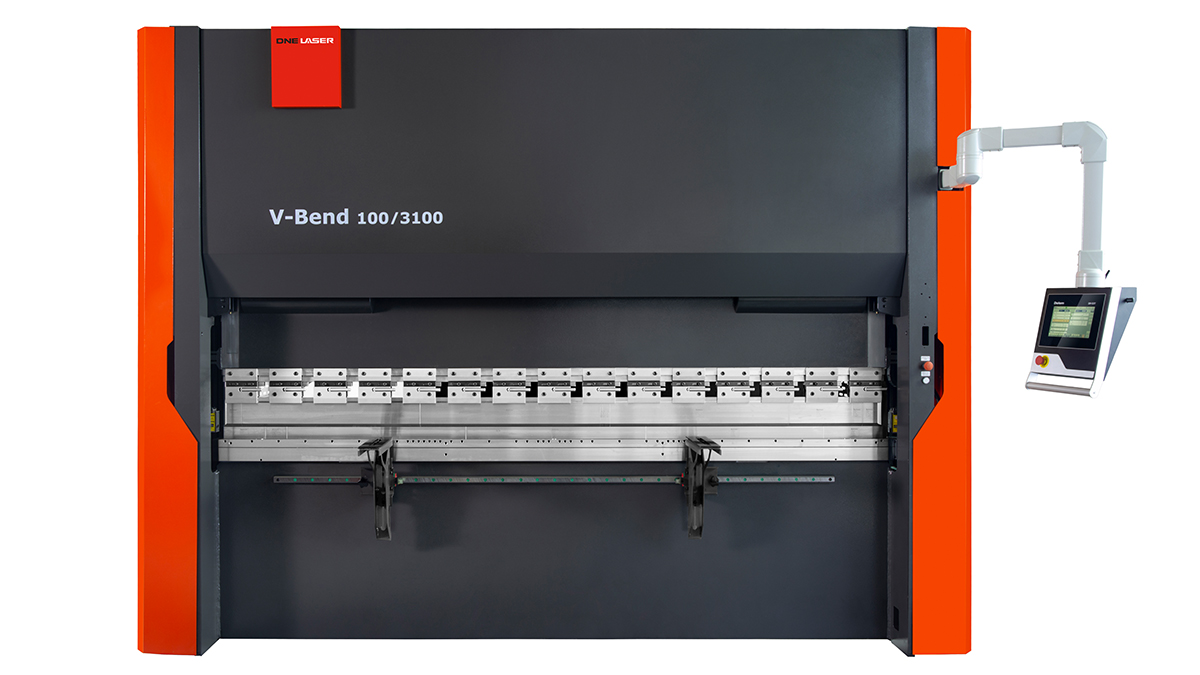

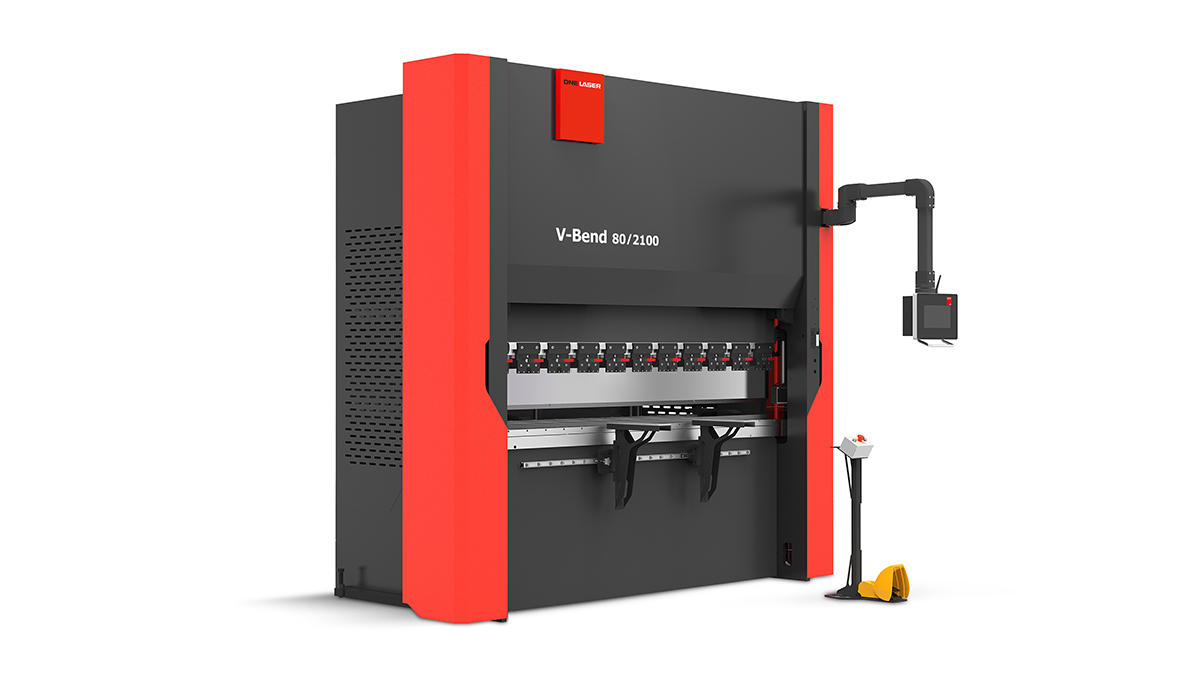

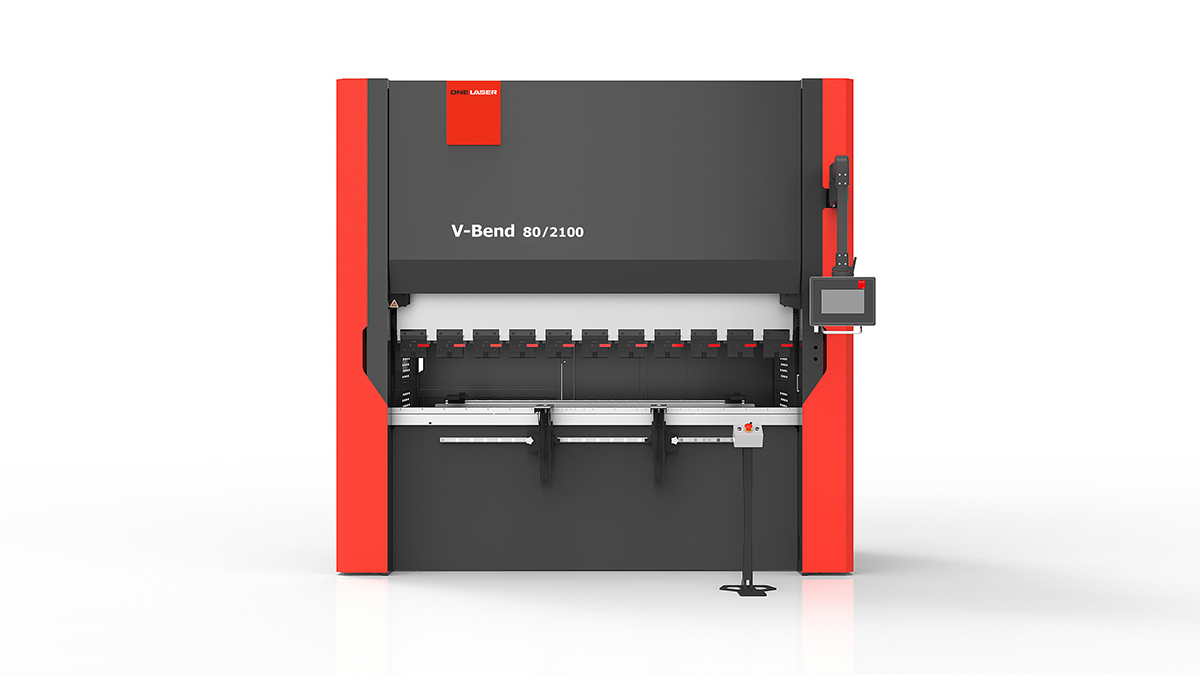

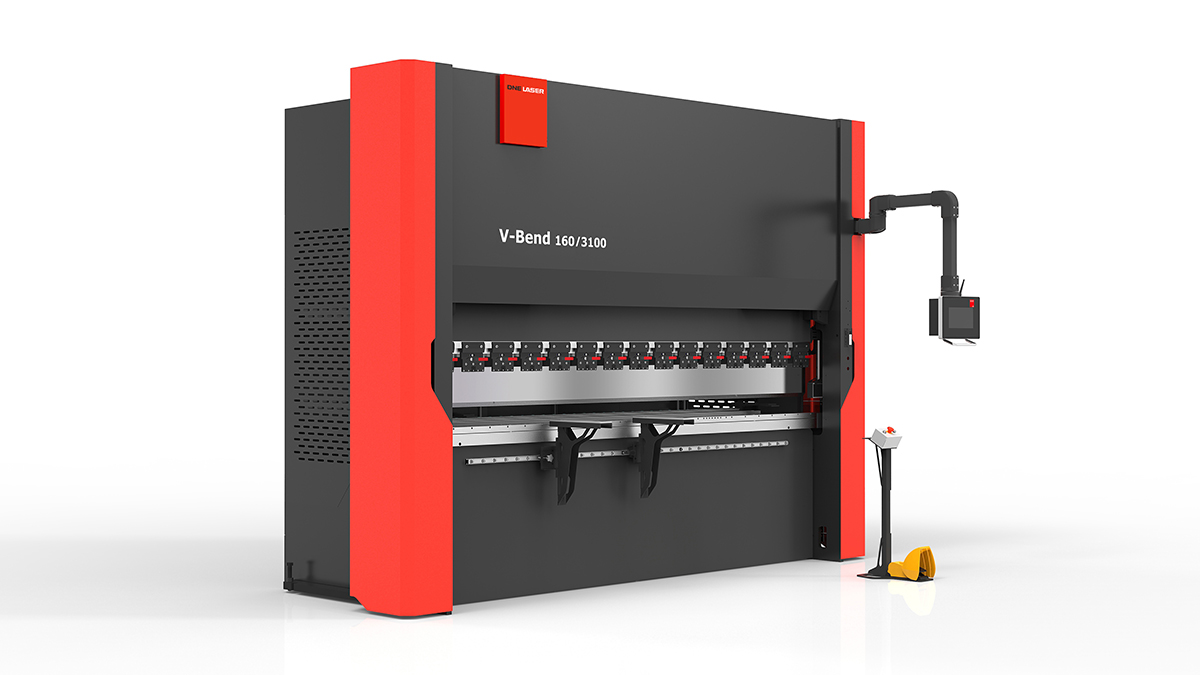

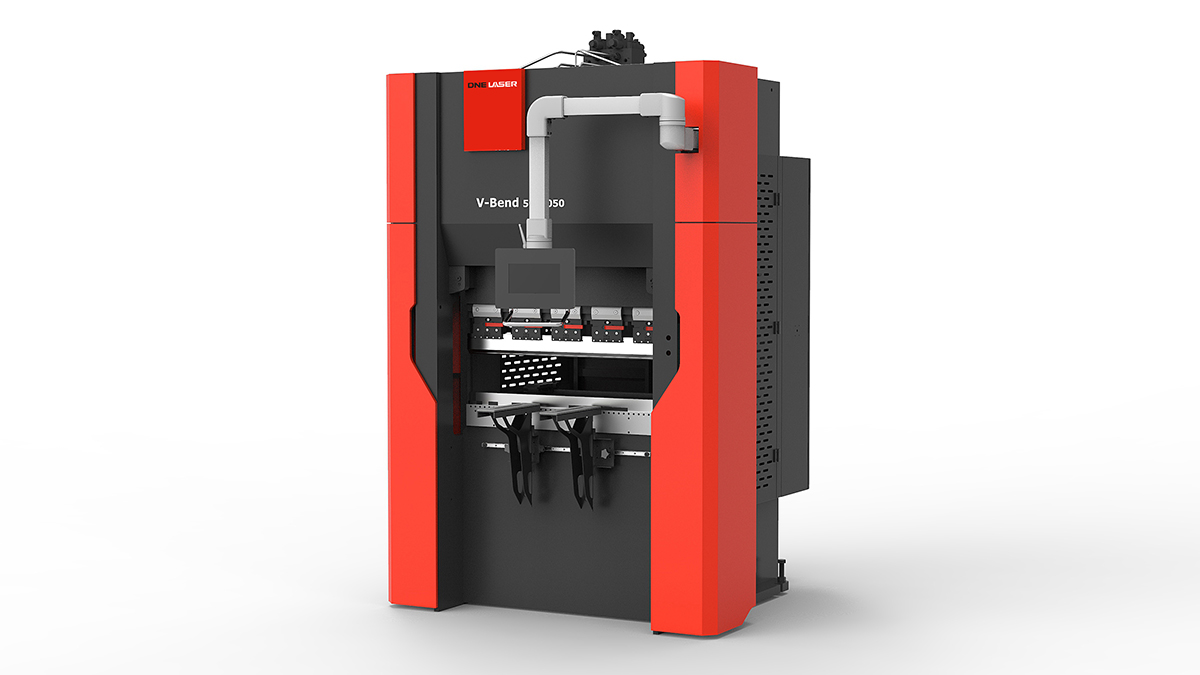

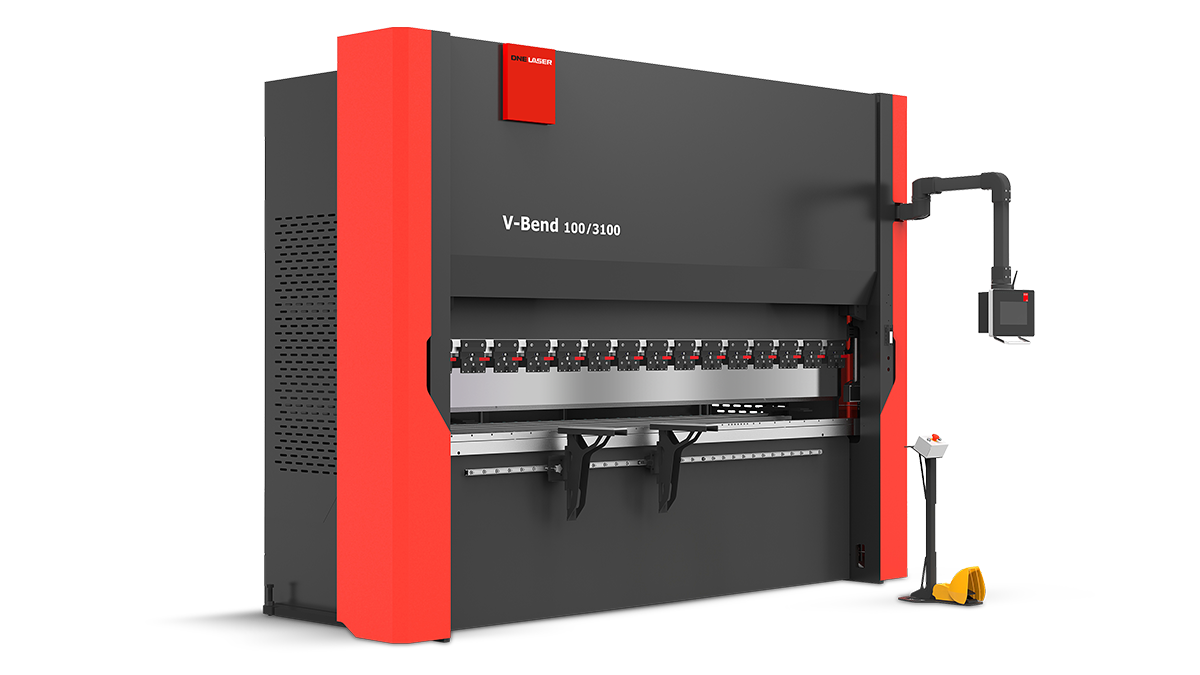

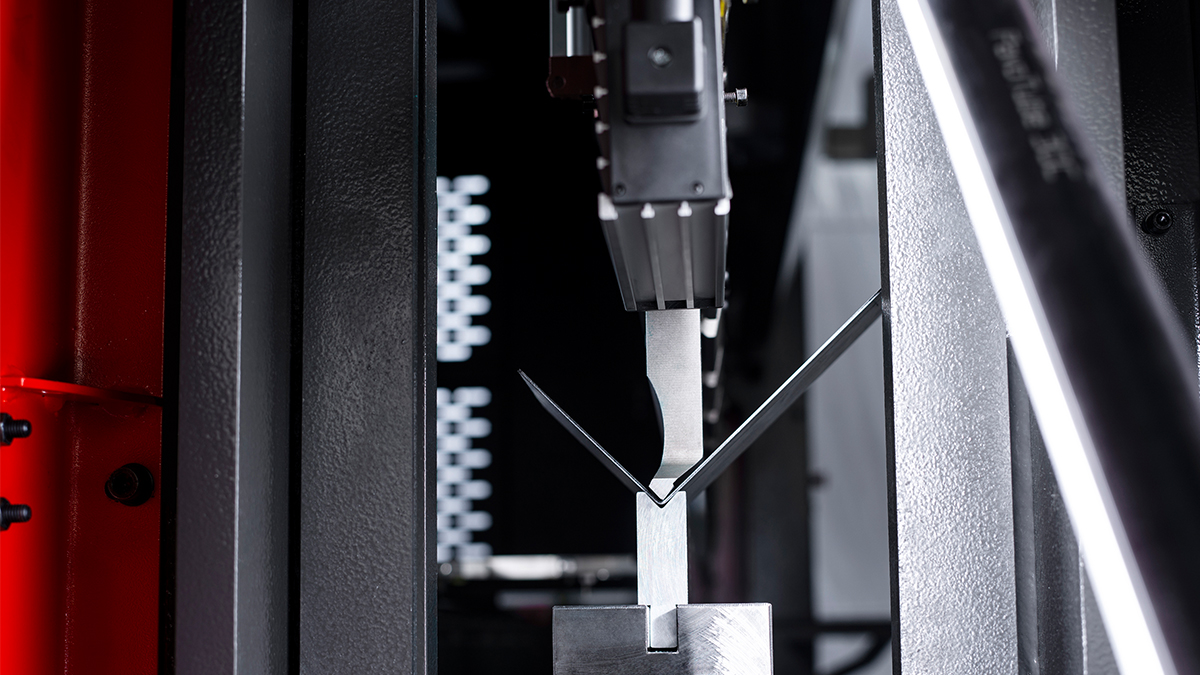

v- Bend series CNC bending machine is a product developed by DNE( Member Of Bystronic) which focuses on high precision sheet metal   bending.
Themachinetool designcombinestheleading bendingtechnologyandcomprehensive professionalknowledgeofBystronic  Group,  focusingonimprovingtheprocessing efficiencyandprecision, reducingwaste,with high costperformance.
C-BendseriesCNCbending machine adopts C-framestructure,compact,  practicaland has highstability,isyour bestchoiceofbatchprocessingandproductioncapacityimprovement.

• Control systemDA53T

The C-Bend series is equipped with the Delem DA53T control system as standard, equipped with a
10.1 "high-resolution TFT color wide-body display, integrated industrial multi-touch screen for easy access to the bending user interface. The whole design is optimized according to the principle of ergonomics, which makes the operation more convenient and humanized. At the same time to meet the different functional requirements and user habits, C-Bend can also provide a variety of other control systems for customers to choose.

• CFrame

The C-Bend series bending machine adopts "C" type frame. "C" frame is not limited by the right and left discharge, which provides greater processing range and processing flexibility. The whole machine is designed by Baichao Swiss R & Dcenterforfiniteelementanalysisandstresscalculation test. In the process of the whole heattreatment, and because the bending line is located in the center of  the "C" shape, the frame has better stress performance, in long-term use can still provide excellent precisionstability.

• Mechanical deflection compensation workbench MT5

In the bending process, the bending machine beam and table will naturally have a tendency to bend, especially in the middle of the piston position. Therefore, if there is no additional compensation, the bending angle will change with the length of the bending machine. To compensate for this problem, the C-Bend series is equipped with the MT5 deflection compensation system specifically designed  for this machine, which consists of two wedge modules. The deflection compensation device is controlled by CNC to compensate the bending deformation of the worktable and upper beam caused by different bending forces. The controller will automatically calculate the compensationvalueandadjustit,noneedto manually adjust thepreset compensation value accordingtoexperience to improveefficiency.
